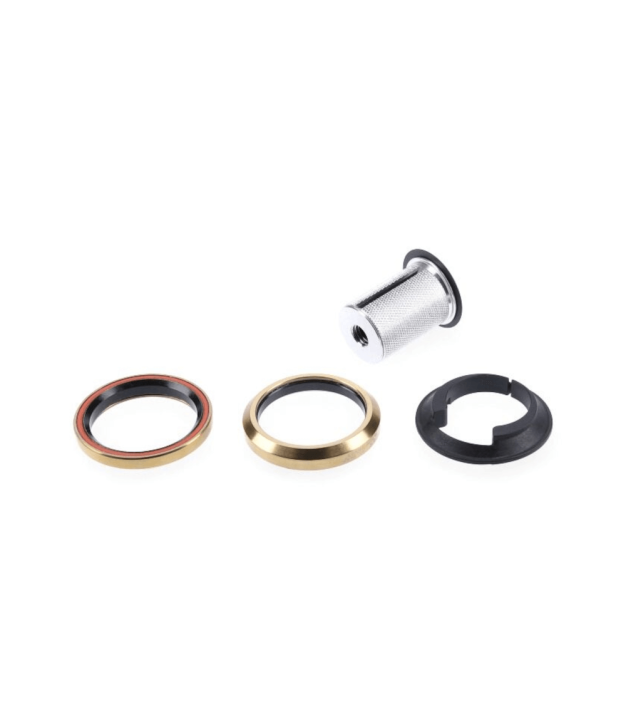

Syncros Integrated Tapered Headset IS52/31.8 | IS52/40

Syncros Integrated Tapered Headset IS52/31.8 | IS52/40

The SYNCROS drop-in headset meets modern standards and guarantees smooth, precise steering. It is high quality, reliable and suitable for 1 1/4 "- 1.5" tapered fork shafts. The sealed bearings are made of stainless steel and guarantee best function and longevity. Due to the special compression ring for the upper bearing, cables or Bowden cables can be pulled. Therefore, it is ideal for internal train laying.

• Material: stainless steel, plastic
• Type: fully integrated
• Steerer: 1 1/4 "- 1.5" tapered (with Compression Ring)
• SHIS upper part: IS52 / 31,8 (with compression ring)
• SHIS lower part: IS52 / 40
• Outer diameter (bearing) top: 52 mm
• Outer diameter (bearing) bottom: 52 mm
• Overall height (only bearings) above: 8 mm
• Overall height (only bearings) below: 8 mm
• Bearing seat: 45 ° / 45 °
• Bearing : Industrial bearing , double sealed
